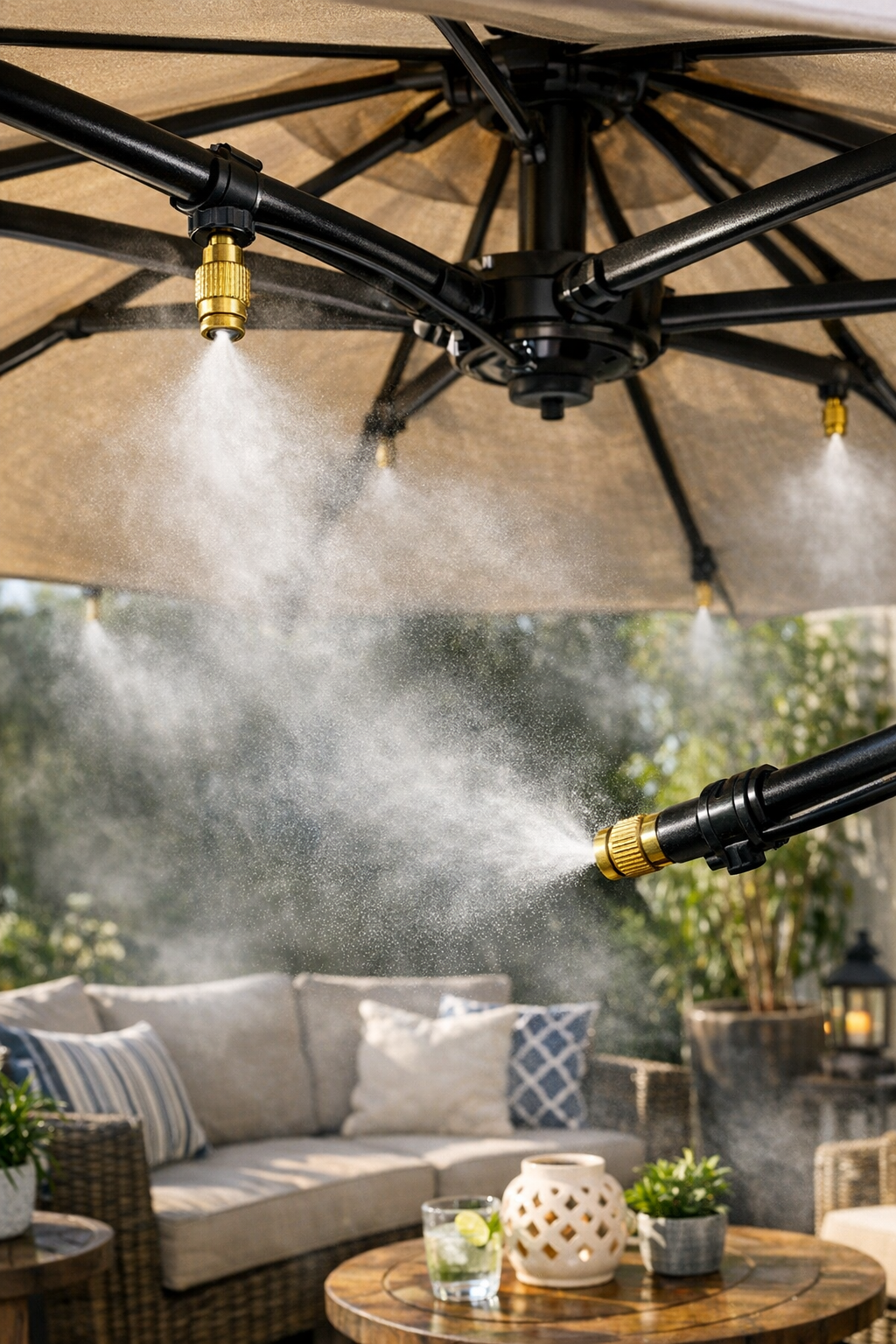

On a sticky Midwestern afternoon, I’m always looking for a simple way to make the patio feel a little more civilized without dragging out a box fan or committing to a full built-in cooling system. This DIY patio mister does exactly that by turning an ordinary patio umbrella into a targeted ring of cooling mist, using brass misting nozzles clamped right onto the umbrella ribs. It’s practical, surprisingly tidy, and far less complicated than it sounds.
If you already have a patio umbrella and access to a garden hose spigot, this is a very approachable weekend project. I like it for renters, small patios, and anyone who wants relief from heat without permanently altering the deck or spending a fortune on outdoor upgrades.

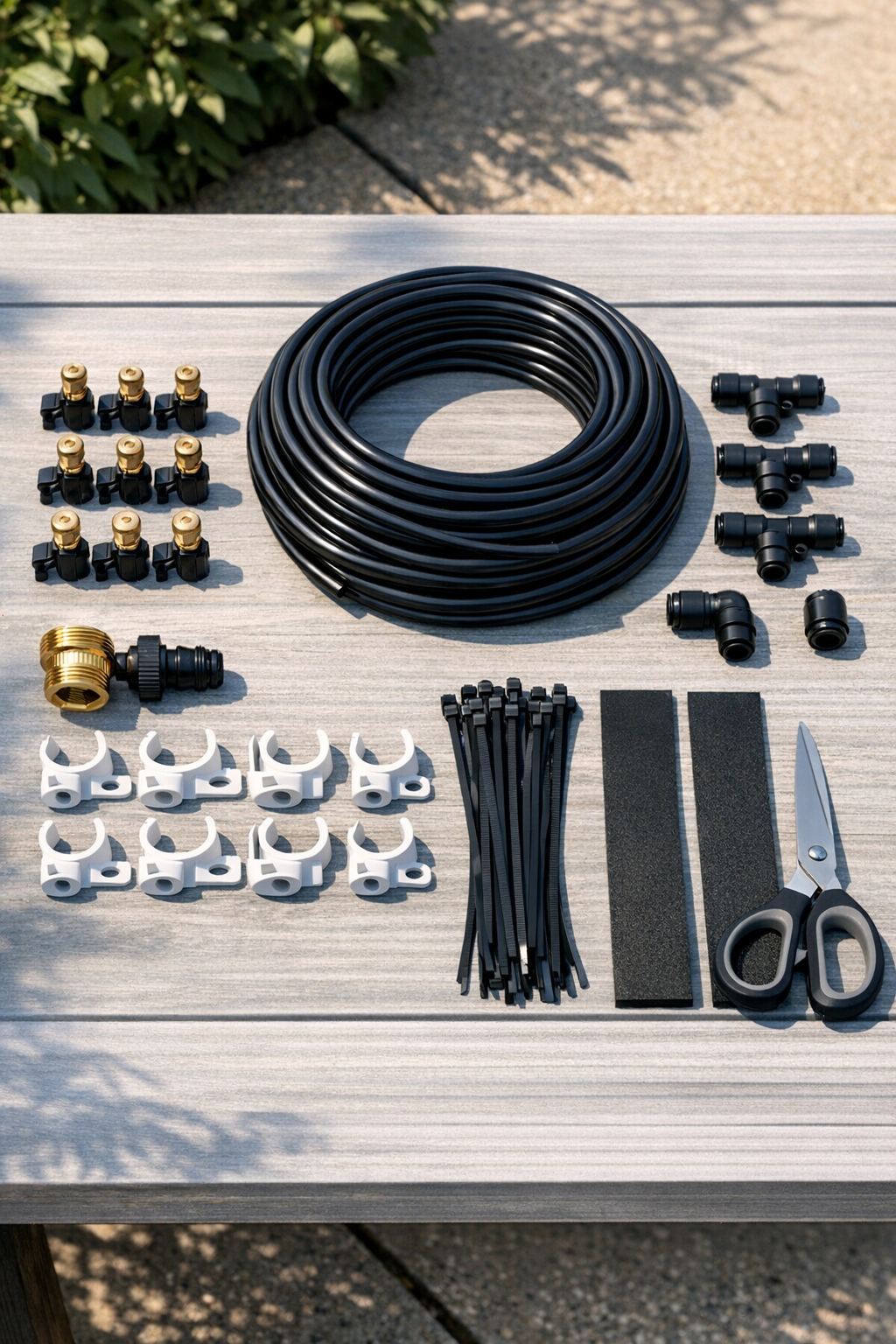

Materials
Instructions
1. Open the patio umbrella fully and lock it in place so the ribs are extended and easy to reach. Wipe the ribs and center pole clean so the clamps and clips sit securely.
2. Plan the nozzle layout by marking one spot on each rib about 8 to 12 inches in from the outer edge of the canopy. Keep every mark at the same distance from the edge so the mist ring looks even and cools the seating area consistently.
3. Wrap a small piece of rubber padding where each clamp will sit, then attach one brass misting nozzle to each rib at the marked spot. Tighten each clamp just enough to hold firmly without crushing or scratching the rib.
4. Starting near the umbrella pole, run the 1/4-inch misting tubing along the first rib toward the nozzle, then continue back toward the center and over to the next rib. Use tee fittings where the line branches to each nozzle and elbows only where you need a clean turn near the center hub.
5. Push the tubing fully into each nozzle fitting and connector until it seats completely. Tug lightly on each connection to confirm it is locked in place before securing the tubing.
6. Fasten the tubing to the ribs with tubing clips or zip ties every 6 to 8 inches, keeping the line snug and tidy along the underside of the umbrella frame. Leave a little slack near the moving hub so the umbrella can still open and close without pulling the tubing loose.
7. Bring the supply end of the tubing down the umbrella pole and secure it vertically with clips or zip ties. Attach the garden hose adapter at the bottom end of the tubing and make sure the hose washer is seated inside the fitting.
8. Cap the far end of the tubing with the 1/4-inch end plug if your line terminates after the last nozzle. Double-check that every unused outlet is plugged and every nozzle is pointed slightly downward and inward toward the seating zone.
9. Turn on the water slowly with the umbrella fully open and watch each nozzle as pressure builds. If one sprays unevenly, shut the water off, reseat the tubing, and adjust the nozzle angle until the mist is fine and directed away from faces and food.
10. Once the spray pattern looks balanced, trim any excess zip tie tails and do one final open-and-close check to confirm nothing snags. Use the mister only when the umbrella is fully open, and shut off the water before closing it.
Variations & Tips
For larger umbrellas: If your umbrella has 8 ribs instead of 6, use 8 nozzles and increase the tubing length to about 24 to 28 feet so each section reaches cleanly without strain.
For lower water pressure: Fewer nozzles often perform better on a standard household spigot. If the mist feels drippy instead of fine, reduce the number of nozzles or add a booster pump made for misting systems.
To protect the umbrella frame: I always add rubber under any metal clamp outdoors; it prevents scratches, improves grip, and helps keep the clamps from shifting over time.
For cleaner patio use: Angle the nozzles outward just a touch if your dining table sits directly underneath. That keeps the cooling effect around the perimeter instead of misting plates and glasses.
For seasonal maintenance: Remove and dry the tubing and nozzles before freezing weather, especially here in the Midwest where a surprise cold snap can split fittings. A quick vinegar soak also helps clear mineral buildup from the brass nozzles.
For a more polished finish: Black UV-resistant tubing usually disappears visually against a dark umbrella frame, which makes the whole project look more intentional and less improvised.
